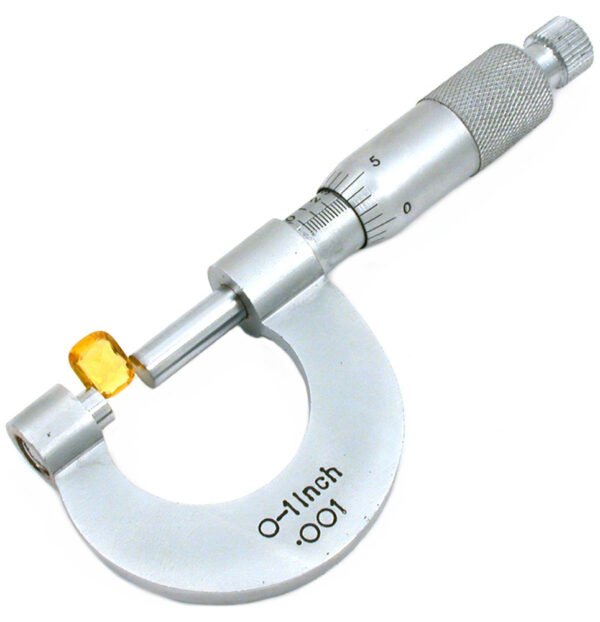

Micrometer caliper (or just “micrometer”) is a precision measuring instrument used to measure the thickness or diameter of small objects. It’s much more accurate than a regular ruler, capable of measuring to the nearest thousandth of an inch (0.001 inches) or even finer in some cases.

Parts of a 1-inch Micrometer Caliper

A typical 1-inch micrometer has the following parts:

• Frame: The C-shaped body that holds the other parts together.
• Anvil: The fixed part where the object being measured rests. Micrometer caliper anvil
• Spindle: The movable part that advances towards the anvil to measure the object.
• Thimble: The cylindrical part that rotates, allowing for fine adjustments of the spindle.
  Micrometer caliper thimble
• Sleeve: The stationary part with the main scale marked in inches and fractions.
  Micrometer caliper sleeve
• Ratchet: A mechanism that prevents over-tightening and ensures consistent pressure.
  Micrometer caliper ratchet

How to Read a 1-inch Micrometer Caliper

Reading a micrometer takes a bit of practice, but here’s the basic process:

1. Zero the Micrometer: Before measuring anything, ensure the micrometer is zeroed. This means the spindle and anvil should be touching with no gap between them, and the reading on the thimble should be zero.
2. Place the Object: Gently place the object you want to measure between the anvil and the spindle.
3. Tighten the Spindle: Use the ratchet to slowly tighten the spindle until you feel a slight resistance. This ensures consistent pressure on the object.
4. Read the Sleeve: Look at the sleeve to determine the inch and half-inch markings.
5. Read the Thimble: Look at the thimble to determine the thousandths of an inch. The line on the sleeve that aligns with the line on the thimble indicates the measurement.

Common Uses of a 1-inch Micrometer Caliper

1-inch micrometers are commonly used in various fields, including:

• Machining: Measuring the dimensions of machined parts with high precision.
  Machining using micrometer caliper
• Manufacturing: Ensuring the accuracy of manufactured components.
  Manufacturing using micrometer caliper
• Automotive: Checking the thickness of gaskets, shims, and other components.
